SAMRAI::pdat::OuternodeData< DIM, TYPE > Class Template Reference

Class OuternodeData is a templated node-centered patch data structure derived from hier::PatchData. It differs from the NodeData<DIM> class in that, given a box, an outernode data object represents node-centered data living only on the border of the patch. More...

#include <source/patchdata/outernode/OuternodeData.h>

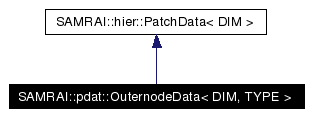

Inheritance diagram for SAMRAI::pdat::OuternodeData< DIM, TYPE >:

[legend]List of all members.

Public Member Functions
	OuternodeData (const hier::Box< DIM > &box, const int depth, tbox::Pointer< tbox::Arena > pool=tbox::Pointer< tbox::Arena >(NULL))
	Constructor for an outernode data object.
virtual	~OuternodeData ()
	Virtual destructor for a outernode data object.
virtual void	copy (const hier::PatchData< DIM > &src)
	A fast copy between the source and destination (i.e., this) patch data objects.
virtual void	copy2 (hier::PatchData< DIM > &dst) const
	A fast copy between the source and destination.
virtual void	copy (const hier::PatchData< DIM > &src, const hier::BoxOverlap< DIM > &overlap)
	Copy data from the source into the destination using the designated overlap descriptor.
virtual void	copy2 (hier::PatchData< DIM > &dst, const hier::BoxOverlap< DIM > &overlap) const
	Copy data from the source into the destination using the designated overlap descriptor.
void	copyDepth (int dst_depth, const NodeData< DIM, TYPE > &src, int src_depth)
	Fast copy between the source and destination at the specified depths.
virtual bool	canEstimateStreamSizeFromBox () const
	Determines whether the patch data subclass can estinate the necessary stream size using only index space information.
virtual int	getDataStreamSize (const hier::BoxOverlap< DIM > &overlap) const
	Calculate the number of bytes needed to stream the data lying in the specified box domain.
virtual void	packStream (tbox::AbstractStream &stream, const hier::BoxOverlap< DIM > &overlap) const
	Pack data lying on the specified index set into the output stream.
virtual void	unpackStream (tbox::AbstractStream &stream, const hier::BoxOverlap< DIM > &overlap)
	Unpack data from the message stream into the specified index set.
int	getDepth () const
	Return the depth (e.g., the number of components in each spatial location) of the array.
bool	dataExists (const int axis) const
	Returns whether outernodes exists for the side normal to a given axis.
TYPE *	getPointer (const int axis, const int side, const int d=0)
	Get a pointer to the beginning of a particular component of the outernode centered array.
const TYPE *	getPointer (const int axis, const int side, const int d=0) const
	Get a const pointer to the beginning of a particular component of the outernode centered array.
ArrayData< DIM, TYPE > &	getArrayData (const int axis, const int side)
	Get a pointer to the array data object of a particular component of the outernode centered array.
const ArrayData< DIM, TYPE > &	getArrayData (const int axis, const int side) const
	Get a const pointer to the array data object of a particular component of the outernode centered array.
TYPE &	operator() (const NodeIndex< DIM > &i, const int depth=0)
	Index<DIM> into the outernode data array using a node index.
const TYPE &	operator() (const NodeIndex< DIM > &i, const int depth=0) const
	Index<DIM> into the outernode data array (via a const reference) using a node index.
hier::Box< DIM >	getDataBox (int dim, int side)
void	fill (const TYPE &t, const int d=0)
	Fill all values of component d with the value t.
void	fill (const TYPE &t, const hier::Box< DIM > &box, const int d=0)
	Fill all values of component d within the box with the value t.
void	fillAll (const TYPE &t)
	Fill all components with value t.
void	fillAll (const TYPE &t, const hier::Box< DIM > &box)
	Fill all components within the box with value t.
void	print (const hier::Box< DIM > &box, ostream &os=tbox::plog, int prec=-1) const
	Print all outernode data residing in the specified box.
void	print (const hier::Box< DIM > &box, const int d, ostream &os=tbox::plog, int prec=-1) const
	Print the specified component of the outernode data residing in the specified box.
void	printAxisSide (const int axis, const int side, const hier::Box< DIM > &box, ostream &os=tbox::plog, int prec=-1) const
	Print all outernode centered data for specified axis index residing in the specified box, axis, and side.
void	printAxisSide (const int axis, const int side, const hier::Box< DIM > &box, const int d, ostream &os=tbox::plog, int prec=-1) const
	Print specified component for all outernode centered data for the specified axis index, side index, and spatial component residing in the specified box.
virtual void	getSpecializedFromDatabase (tbox::Pointer< tbox::Database > database)
	Check that class version and restart file version are equal. If so, read data members from the database.
virtual void	putSpecializedToDatabase (tbox::Pointer< tbox::Database > database)
	Write out the class version number and other data members to the database.
Static Public Member Functions
static size_t	getSizeOfData (const hier::Box< DIM > &box, const int depth)
	Calculate the amount of memory needed to represent the data in an outernode centered grid.

---

Detailed Description

template<int DIM, class TYPE>
class SAMRAI::pdat::OuternodeData< DIM, TYPE >

Class OuternodeData is a templated node-centered patch data structure derived from hier::PatchData. It differs from the NodeData<DIM> class in that, given a box, an outernode data object represents node-centered data living only on the border of the patch.

It is templated on TYPE with a specified depth (that is, number of components for each spatial location). See the node geometry and patch data classes for more information about the translation between the AMR index space and node-centered data.

Outernode data is stored in 2*DIM arrays, containing the data for the patch boundary sides with each of the possible outward pointing normal directions. Where an outernode falls on more than one side (patch edges and corners), the outernode belongs to the array associated with the higher dimensional direction. In each of these arrays, memory allocation is in column-major ordering (e.g., Fortran style) so that the leftmost index runs fastest in memory. For example, a three-dimensional outernode data object instantiated with a box [l0:u0,l1:u1,l2:u2] allocates six data (i.e., three pairs) arrays dimensioned as:

 *
 *
 *    X:  [ l1+1 : u1   ,
 *          l2+1 : u2   , d ]   ,
 *
 *    Y:  [ l0   : u0+1 ,
 *          l2+1 : u2   , d ]   ,
 *
 *    Z:  [ l0   : u0+1 ,
 *          l1   : u1+1 , d ]   ,
 *
 *

for the upper and lower x, y, and z (or 0, 1, 2) face directions, respectively. One- and two-dimensional node data arrays are managed similary.

The data type TYPE must define a default constructor (that takes no arguments) and also the assignment operator.

See also:

pdat::ArrayData

hier::PatchData

pdat::OuternodeDataFactory

pdat::OuternodeIndex

pdat::NodeIterator

pdat::OuternodeGeometry

---

Constructor & Destructor Documentation

template<int DIM, class TYPE> SAMRAI::pdat::OuternodeData< DIM, TYPE >::OuternodeData (  const hier::Box< DIM > &  box, const int  depth, tbox::Pointer< tbox::Arena >  pool = tbox::Pointer< tbox::Arena >(NULL) )

Constructor for an outernode data object. Parameters: box  describes the interior of the index space Note that the ghost cell width is currently fixed at zero. depth  gives the number of components for each spatial location in the array. pool  memory arena. If not given, then the standard arena is used.

template<int DIM, class TYPE> SAMRAI::pdat::OuternodeData< DIM, TYPE >::~OuternodeData (   )  [virtual]

Virtual destructor for a outernode data object.

---

Member Function Documentation

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::copy (  const hier::PatchData< DIM > &  src  )  [virtual]

A fast copy between the source and destination (i.e., this) patch data objects. Data is copied where there is overlap in the underlying index space. The copy is performed on the interior plus the ghost cell width (for both the source and destination). Currently, source data must be NodeData<DIM>. If copy() does not understand the source object type, then copy2() is called.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::copy2 (  hier::PatchData< DIM > &  dst  )  const [virtual]

A fast copy between the source and destination. Member function copy2() is similar to copy() except that the location of source and destination are reversed and copy2() throws an exception (aka dumps core) if it does not understand the type of the argument. Currently, the destination data must be NodeData<DIM>.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::copy (  const hier::PatchData< DIM > &  src, const hier::BoxOverlap< DIM > &  overlap )  [virtual]

Copy data from the source into the destination using the designated overlap descriptor. The overlap description will have been computed using the appropriate box geometry objects. If copy() does not understand the source object type, then copy2() is called. Currently, this function does nothing since copying to Outernode from Outernode is not defined on all box overlap configurations.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::copy2 (  hier::PatchData< DIM > &  dst, const hier::BoxOverlap< DIM > &  overlap )  const [virtual]

Copy data from the source into the destination using the designated overlap descriptor. Member function copy2() is similar to the copy() member function except that the location of source and destination are reversed and copy2() throws an exception (aka dumps core) if it does not understand the type of the argument. Currently, the destination data must be NodeData<DIM>.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::copyDepth (  int  dst_depth, const NodeData< DIM, TYPE > &  src, int  src_depth )

Fast copy between the source and destination at the specified depths. Data is copied from the source into the destination where there is overlap in the underlying index space. The copy is performed on the interior plus the ghost cell width (for both the source and destination).

template<int DIM, class TYPE> bool SAMRAI::pdat::OuternodeData< DIM, TYPE >::canEstimateStreamSizeFromBox (   )  const [virtual]

Determines whether the patch data subclass can estinate the necessary stream size using only index space information. This routine is defined for the standard built-in types (bool, char, double, float, and int). Implements SAMRAI::hier::PatchData< DIM >.

template<int DIM, class TYPE> int SAMRAI::pdat::OuternodeData< DIM, TYPE >::getDataStreamSize (  const hier::BoxOverlap< DIM > &  overlap  )  const [virtual]

Calculate the number of bytes needed to stream the data lying in the specified box domain. This routine is defined for the standard built-in types (bool, char, double, float, and int).

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::packStream (  tbox::AbstractStream &  stream, const hier::BoxOverlap< DIM > &  overlap )  const [virtual]

Pack data lying on the specified index set into the output stream.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::unpackStream (  tbox::AbstractStream &  stream, const hier::BoxOverlap< DIM > &  overlap )  [virtual]

Unpack data from the message stream into the specified index set.

template<int DIM, class TYPE> int SAMRAI::pdat::OuternodeData< DIM, TYPE >::getDepth (   )  const [inline]

Return the depth (e.g., the number of components in each spatial location) of the array.

template<int DIM, class TYPE> bool SAMRAI::pdat::OuternodeData< DIM, TYPE >::dataExists (  const int  axis  )  const [inline]

Returns whether outernodes exists for the side normal to a given axis. The axis gives the I=0, J=1, or K=2 axis. Recall that outernodes that lie on corners or edges are seen on multiple sides of a box. By convention, duplicated nodes belong to the side of the box normal to the axis with the higher dimension. If a side consists of only outnerodes that are owned by a higher dimension, no data exists on that side. This method is used to determine whether any data exists on the given side.

template<int DIM, class TYPE> TYPE * SAMRAI::pdat::OuternodeData< DIM, TYPE >::getPointer (  const int  axis, const int  side, const int  d = 0 )  [inline]

Get a pointer to the beginning of a particular component of the outernode centered array. The axis gives the X=0, Y=1, or Z=2 axis and the side gives the lower=0 or upper=1 side. See class description for the size of the array returned.

template<int DIM, class TYPE> const TYPE * SAMRAI::pdat::OuternodeData< DIM, TYPE >::getPointer (  const int  axis, const int  side, const int  d = 0 )  const [inline]

Get a const pointer to the beginning of a particular component of the outernode centered array. The axis gives the X=0, Y=1, or Z=2 axis and the side gives the lower=0 or upper=1 side. See class description for the size of the array returned.

template<int DIM, class TYPE> ArrayData< DIM, TYPE > & SAMRAI::pdat::OuternodeData< DIM, TYPE >::getArrayData (  const int  axis, const int  side )  [inline]

Get a pointer to the array data object of a particular component of the outernode centered array. The axis gives the X=0, Y=1, or Z=2 axis and the side gives the lower=0 or upper=1 side.

template<int DIM, class TYPE> const ArrayData< DIM, TYPE > & SAMRAI::pdat::OuternodeData< DIM, TYPE >::getArrayData (  const int  axis, const int  side )  const [inline]

Get a const pointer to the array data object of a particular component of the outernode centered array. The axis gives the X=0, Y=1, or Z=2 axis and the side gives the lower=0 or upper=1 side.

template<int DIM, class TYPE> TYPE & SAMRAI::pdat::OuternodeData< DIM, TYPE >::operator() (  const NodeIndex< DIM > &  i, const int  depth = 0 )  [inline]

Index<DIM> into the outernode data array using a node index. The index MUST be an index on the outernode of the box.

template<int DIM, class TYPE> const TYPE & SAMRAI::pdat::OuternodeData< DIM, TYPE >::operator() (  const NodeIndex< DIM > &  i, const int  depth = 0 )  const [inline]

Index<DIM> into the outernode data array (via a const reference) using a node index. The index MUST be an index on the outernode of the box.

template<int DIM, class TYPE> hier::Box< DIM > SAMRAI::pdat::OuternodeData< DIM, TYPE >::getDataBox (  int  dim, int  side )

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::fill (  const TYPE &  t, const int  d = 0 )

Fill all values of component d with the value t.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::fill (  const TYPE &  t, const hier::Box< DIM > &  box, const int  d = 0 )

Fill all values of component d within the box with the value t.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::fillAll (  const TYPE &  t  )

Fill all components with value t.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::fillAll (  const TYPE &  t, const hier::Box< DIM > &  box )

Fill all components within the box with value t.

template<int DIM, class TYPE> size_t SAMRAI::pdat::OuternodeData< DIM, TYPE >::getSizeOfData (  const hier::Box< DIM > &  box, const int  depth )  [static]

Calculate the amount of memory needed to represent the data in an outernode centered grid. This function assumes that the amount of memory needed for TYPE is sizeof(TYPE). If this is not the case, then a specialized function must be defined.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::print (  const hier::Box< DIM > &  box, ostream &  os = tbox::plog, int  prec = -1 )  const

Print all outernode data residing in the specified box. If the depth of the array is greater than one, all components are printed. Precision of floating point numbers (i.e., TYPE = float, double, or dcomplex) can be specified using the provided argument. The default is 12 decimal places for double and complex floating point numbers, and the default is 6 decimal places floats. For other types, this is ignored.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::print (  const hier::Box< DIM > &  box, const int  d, ostream &  os = tbox::plog, int  prec = -1 )  const

Print the specified component of the outernode data residing in the specified box. Precision of floating point numbers (i.e., TYPE = float, double, or dcomplex) can be specified using the provided argument. The default is 12 decimal places for double and complex floating point numbers, and the default is 6 decimal places floats. For other types, this is ignored.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::printAxisSide (  const int  axis, const int  side, const hier::Box< DIM > &  box, ostream &  os = tbox::plog, int  prec = -1 )  const

Print all outernode centered data for specified axis index residing in the specified box, axis, and side. If the depth of the data is greater than one, then all components are printed. Precision of floating point numbers (i.e., TYPE = float, double, or dcomplex) can be specified using the provided argument. The default is 12 decimal places for double and complex floating point numbers, and the default is 6 decimal places floats. For other types, this is ignored.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::printAxisSide (  const int  axis, const int  side, const hier::Box< DIM > &  box, const int  d, ostream &  os = tbox::plog, int  prec = -1 )  const

Print specified component for all outernode centered data for the specified axis index, side index, and spatial component residing in the specified box. Precision of floating point numbers (i.e., TYPE = float, double, or dcomplex) can be specified using the provided argument. The default is 12 decimal places for double and complex floating point numbers, and the default is 6 decimal places floats. For other types, this is ignored.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::getSpecializedFromDatabase (  tbox::Pointer< tbox::Database >  database  )  [virtual]

Check that class version and restart file version are equal. If so, read data members from the database. Assertions: database must be a non-null pointer. Implements SAMRAI::hier::PatchData< DIM >.

template<int DIM, class TYPE> void SAMRAI::pdat::OuternodeData< DIM, TYPE >::putSpecializedToDatabase (  tbox::Pointer< tbox::Database >  database  )  [virtual]

Write out the class version number and other data members to the database. Assertions: database must be a non-null pointer. Implements SAMRAI::hier::PatchData< DIM >.

---

The documentation for this class was generated from the following files:

• source/patchdata/outernode/OuternodeData.h
• source/patchdata/outernode/OuternodeData.C
• source/patchdata/outernode/OuternodeData.I

---
