#include <source/mesh/gridding/StandardTagAndInitialize.h>

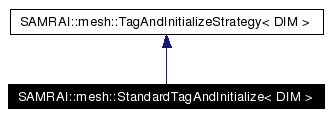

Inheritance diagram for SAMRAI::mesh::StandardTagAndInitialize< DIM >:
Public Member Functions | |
StandardTagAndInitialize (const string &object_name, StandardTagAndInitStrategy< DIM > *tag_strategy, tbox::Pointer< tbox::Database > input_db=tbox::Pointer< tbox::Database >((0))) | |
virtual | ~StandardTagAndInitialize () |
bool | usesTimeIntegration () const |
int | getErrorCoarsenRatio () const |
void | checkCoarsenRatios (const tbox::Array< hier::IntVector< DIM > > &ratio_to_coarser) |
void | initializeLevelData (const tbox::Pointer< hier::BasePatchHierarchy< DIM > > hierarchy, const int level_number, const double init_data_time, const bool can_be_refined, const bool initial_time, const tbox::Pointer< hier::BasePatchLevel< DIM > > old_level=tbox::Pointer< hier::BasePatchLevel< DIM > >((0)), const bool allocate_data=true) |
void | resetHierarchyConfiguration (const tbox::Pointer< hier::BasePatchHierarchy< DIM > > hierarchy, const int coarsest_level, const int finest_level) |
void | preprocessErrorEstimation (const tbox::Pointer< hier::BasePatchHierarchy< DIM > > hierarchy, const int level_number, const double regrid_time, const double regrid_start_time, const bool initial_time) |
void | tagCellsForRefinement (const tbox::Pointer< hier::BasePatchHierarchy< DIM > > level, const int level_number, const double regrid_time, const int tag_index, const bool initial_time, const bool coarsest_sync_level, const bool can_be_refined, const double regrid_start_time=0) |
bool | coarsestLevelBoxesOK (const hier::BoxArray< DIM > &boxes) const |
bool | refineUserBoxInputOnly () const |
void | turnOnGradientDetector () |
void | turnOffGradientDetector () |
void | turnOnRichardsonExtrapolation () |
void | turnOffRichardsonExtrapolation () |
void | turnOnRefineBoxes () |
void | turnOffRefineBoxes () |
void | getFromInput (tbox::Pointer< tbox::Database > db) |
It is possible to use combinations of these three methods (e.g., use gradient detection, Richardson extrapolation, and static refine boxes at the same time). The order in which they are executed is fixed ( Richardson extrapolation first, gradient detection second, and refine boxes third). An input entry for this class is optional. If none is provided, the class will by default not use any criteria to tag cells for refinement.
Required input keys and data types: NONE
Optional input keys, data types, and defaults:
* * tagging_method = "GRADIENT_DETECTOR", "REFINE_BOXES" * <refine boxes input> (@see mesh::TagAndInitializeStrategy) * *
This class supplies the routines for tagging cells and invoking problem-specific level initialization routines after AMR patch hierarchy levels change. A number of problem-specific operations are performed in the StandardTagAndInitStrategy<DIM> data member, for which methods are specified in a derived subclass.
|
Constructor for StandardTagAndInitialize<DIM> which may read inputs from the provided input_db. If no input database is provided, the class interprets that no tagging is desired so no cell-tagging will be performed. |
|
Virtual destructor for StandardTagAndInitialize<DIM>. |
|
Specifies whether the chosen method advances the solution data in the regridding process (Richardson extrapolation does, the others will not). Implements SAMRAI::mesh::TagAndInitializeStrategy< DIM >. |
|
Return coarsen ratio used for applying cell tagging. An error coarsen ratio other than 2 or 3 will throw an error. Implements SAMRAI::mesh::TagAndInitializeStrategy< DIM >. |
|
Some restrictions may be placed on the coarsen ratio used for cell tagging. Check these here. Implements SAMRAI::mesh::TagAndInitializeStrategy< DIM >. |
|
Pass the request to initialize the data on a new level in the hierarchy to the StandardTagAndInitStrategy<DIM> data member. Required arguments specify the grid hierarchy, level number being initialized, simulation time at which the data is initialized, whether the level can be refined, and whether it is the initial time. Optional arguments include an old level, from which data may be used to initialize this level, and a flag that indicates whether data on the initialized level must first be allocated. For more information on the operations that must be performed, see the TagAndInitializeStrategy<DIM>::initializeLevelData() method. Implements SAMRAI::mesh::TagAndInitializeStrategy< DIM >. |
|
Pass the request to reset information that depends on the hierarchy configuration to the StandardTagAndInitStrategy<DIM> data member. For more information on the operations that must be performed, see the TagAndInitializeStrategy<DIM>::resetHierarchyConfiguration() method. Implements SAMRAI::mesh::TagAndInitializeStrategy< DIM >. |
|
Certain cases may require pre-processing of error estimation data before tagging cells, which is handled by this method. For more information on the operations that must be performed, see the TagAndInitializeStrategy<DIM>::preprocessErrorEstimation() method Implements SAMRAI::mesh::TagAndInitializeStrategy< DIM >. |
|
Pass the request to set tags on the given level where refinement of that level should occur. Gradient detection, Richardson extrapolation, and tagging on static refine boxes is performed here. For more information on the operations that must be performed, see the TagAndInitializeStrategy<DIM>::tagCellsForRefinement() routine. Implements SAMRAI::mesh::TagAndInitializeStrategy< DIM >. |
|
Return true if boxes for coarsest hierarchy level are not appropriate for gridding strategy. Otherwise, return false. If false is returned, it is useful to provide a detailed explanatory message describing the problems with the boxes. Implements SAMRAI::mesh::TagAndInitializeStrategy< DIM >. |
|
Return whether refinement is being performed using ONLY user-supplied refine boxes. If any method is used that invokes tagging, this will return false. Implements SAMRAI::mesh::TagAndInitializeStrategy< DIM >. |
|
Turn on gradient detector to tag cells for refinement. |
|
Turn off gradient detector. |
|
Turn on Richardson extrapolation to tag cells for refinement. |
|
Turn off Richardson extrapolation. |
|
Turn on static refine box regions where refinement should occur. |
|
Turn off static refine box regions. |
|
Read input values, indicated above, from given database. When assertion checking is active, the database pointer must be non-null. |
