#include <source/mesh/gridding/BaseGriddingAlgorithm.h>

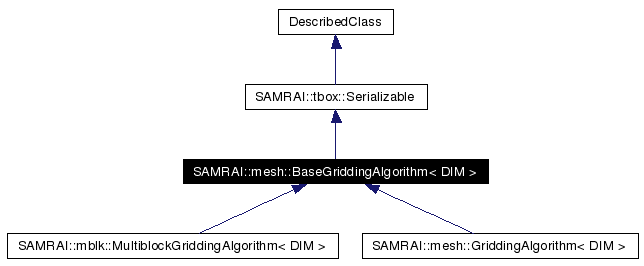

Inheritance diagram for SAMRAI::mesh::BaseGriddingAlgorithm< DIM >:
Public Member Functions | |
| BaseGriddingAlgorithm () | |
| Default constructor. | |
| virtual | ~BaseGriddingAlgorithm () |
| Virtual destructor for BaseGriddingAlgorithm<DIM>. | |
| virtual void | makeCoarsestLevel (tbox::Pointer< hier::BasePatchHierarchy< DIM > > hierarchy, const double level_time)=0 |
| Construct the coarsest level in a hierarchy (i.e., level 0). | |
| virtual void | makeFinerLevel (tbox::Pointer< hier::BasePatchHierarchy< DIM > > hierarchy, const double level_time, const bool initial_time, const int tag_buffer, const double regrid_start_time=0.)=0 |
| This routine attempts to create a new level in a hierarchy finer than the finest level currently residing in the hierarchy. | |
| virtual void | regridAllFinerLevels (tbox::Pointer< hier::BasePatchHierarchy< DIM > > hierarchy, const int level_number, const double regrid_time, const tbox::Array< int > &tag_buffer, tbox::Array< double > regrid_start_time=tbox::Array< double >(), const bool level_is_coarsest_to_sync=true)=0 |
| This routine attempts to reconfigure the patches on each level in an AMR patch hierarchy which is finer than the specified level. | |
| virtual bool | errorEstimationUsesTimeIntegration () const =0 |
| Return true if error estimation process uses time integration; otherwise, return false. | |
| virtual int | getErrorCoarsenRatio () const =0 |
| Return the error coarsen ratio. | |
| virtual bool | levelCanBeRefined (const int level_number) const =0 |
| Return true if level associated with the specified level number can be refined; i.e., the level number is less than that of the finest level allowed in the hierarchy. Otherwise, false is returned. | |
| virtual tbox::Pointer< TagAndInitializeStrategy< DIM > > | getTagAndInitializeStrategy () const =0 |
| Return pointer to level gridding strategy data member. | |
| virtual int | getMaxLevels () const =0 |
| Return maximum number of levels allowed in hierarchy. | |
| virtual const hier::IntVector< DIM > & | getRatioToCoarserLevel (const int level_number) const =0 |
| Return const reference to ratio between specified level and next coarser. | |
| virtual double | getEfficiencyTolerance (const int level_number) const =0 |
| Return efficiency tolerance for clustering tags on level. | |
| virtual double | getCombineEfficiency (const int level_number) const =0 |
| Return combine efficiency for clustering tags on level. | |
| virtual int | getProperNestingBuffer (const int level_number) const =0 |
| Return proper nesting buffer width for level. | |
| virtual void | putToDatabase (tbox::Pointer< tbox::Database > db)=0 |
| Write object state out to the given database. | |
Class BaseGriddingAlgorithm in a virtual base class that provides an abstract interface for a gridding algorithm. This allows higher-level classes in SAMRAI and in applications that use SAMRAI to interface with a gridding algorithm in an abstract manner without knowing whether it is a mesh::GriddingAlgorithm that handles gridding operations on a rectangular domain or if it is an algorithm for gridding on, for example, a multiblock domain.
|
|||||||||
|
Default constructor.
|
|
|||||||||
|
Virtual destructor for BaseGriddingAlgorithm<DIM>.
|
|
||||||||||||||||
|
Construct the coarsest level in a hierarchy (i.e., level 0). If level 0 does not already exist, then the domain specification is checked against the constraints of the grid generation procedures. The level gridding strategy data member defines these constraints. Recall that the domain specification is maintained by the grid geometry associated with the hierarchy. Generally, an unrecoverable exception will result if the constraints are not satisfied. If level 0 already exists in the hierarchy, then the routine will generate a new level by re-applying the load balancing procedure to the existing level. Data will be moved from the old level to the new level and the pre-existing level 0 will be discarded. Note that this routine is different than the routine makeFinerLevel() below, which is used to construct levels 1 and finer. In particular, this routine does not select cells for refinement, whereas the other routine does. Important note: If assertion checking is turned on, then an unrecoverable assertion will result if either the patch hierarchy or its grid geometry is NULL.
Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
||||||||||||||||||||||||||||
|
This routine attempts to create a new level in a hierarchy finer than the finest level currently residing in the hierarchy. It will select cells for refinement on the finest level and construct a new finest level, if necessary. If no cells are selected for refinement, no new level will be added to the hierarchy. The boolean argument initial_time indicates whether the routine is called at the initial simulation time. If true, this routine is used to build individual levels during the construction of the AMR hierarchy at the initial simulation time. If false, the routine is being used to add new levels to the hierarchy at some later point. In either case, the time value is the current simulation time. Note that this routine cannot be used to construct the coarsest level in the hierarchy (i.e., level 0). The routine makeCoarsestLevel() above must be used for that purpose. The tag buffer indicates the number of cells by which cells selected for refinement will be buffered before new finer level boxes are constructed. The buffer is important to keep phenomena of interest on refined regions of the mesh until adaptive regridding occurs next. Thus, the buffer size should take into account how the simulation may evolve before regridding occurs (e.g., number of timesteps taken). Important note: If assertion checking is activated, several checks are applied to the functions arguments. If any check is violated, an unrecoverable assertion will result. In particular, the hierarchy pointer must be non-NULL and the given level number must match that of the finest level currently residing in the hierarchy. Also, the the tag buffer must be positive.
Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
||||||||||||||||||||||||||||||||
|
This routine attempts to reconfigure the patches on each level in an AMR patch hierarchy which is finer than the specified level. The given level number is that of the coarsest level on which cells will be selected for refinement. In other words, that level is the finest level that will not be subject to a change in its patch configuration during the regridding process. Generally, this routine should be used to alter a pre-existing AMR patch hierarchy based on the need to adapt the computational mesh around some phenomenon of interest. The routine makeFinerLevel() above should be used to construct an initial hierarchy configuration or to add more than one new level into the hierarchy. Also, this routine will not reconfigure the patches on level 0 (i.e., the coarsest in any hierarchy). The routine makeCoarsestLevel() above is provided for that purpose. Note that the current algorithm permits at most one new finest level to be added to the hierarchy with each invocation of the regridding process. This constraint, though seemingly restrictive makes the process of maintaining properly nested levels much easier. The tag buffer array indicates the number of cells by which cells selected for refinement on a level will be buffered before new finer level boxes are constructed. The buffer is important to keep phenomena of interest on refined regions of the mesh until adaptive regridding occurs next. Thus, the buffer size should take into account how the simulation may evolve before regridding occurs (e.g., number of timesteps taken on each level). The boolean argument is used for regridding in time-dependent problems. When true, it indicates that the specified level is the coarsest level to synchronize at the current regrid time before this regridding method is called. This is a pretty idiosyncratic argument but allows some flexibility in the way memory is managed during time-dependent regridding operations. Important note: If assertion checking is activated, several checks are applied to the functions arguments. If any check is violated, an unrecoverable assertion will result. In particular, the hierarchy pointer must be non-NULL and the given level number must match that of of some level in the hierarchy. Also, the tag buffer array must contain a positive value for each level in the hierarchy.
Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
|||||||||
|
Return true if error estimation process uses time integration; otherwise, return false.
Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
|||||||||
|
Return the error coarsen ratio. This is needed for cases where an error estimation scheme uses time integration (e.g. Richardson extrapolation) to determine how many time levels to maintain to properly apply the estimtion scheme. In general, an even refine ratio (e.g. 2, 4, 8) will maintain two time levels, while while an odd refine ratio (e.g. 3) will maintain three. Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
||||||||||
|
Return true if level associated with the specified level number can be refined; i.e., the level number is less than that of the finest level allowed in the hierarchy. Otherwise, false is returned.
Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
|||||||||
|
Return pointer to level gridding strategy data member.
Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
|||||||||
|
Return maximum number of levels allowed in hierarchy.
Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
||||||||||
|
Return const reference to ratio between specified level and next coarser.
Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
||||||||||
|
Return efficiency tolerance for clustering tags on level.
Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
||||||||||
|
Return combine efficiency for clustering tags on level.
Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
||||||||||
|
Return proper nesting buffer width for level.
Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
|
||||||||||
|
Write object state out to the given database. When assertion checking is active, the database pointer must be non-null. Implemented in SAMRAI::mesh::GriddingAlgorithm< DIM >, and SAMRAI::mblk::MultiblockGriddingAlgorithm< DIM >. |
