#include <source/hierarchy/patches/GridGeometry.h>

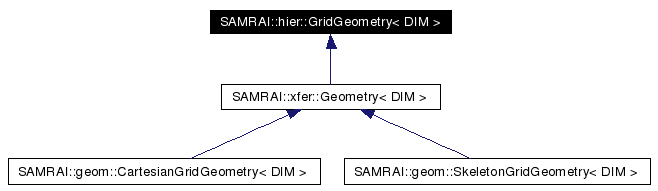

Inheritance diagram for SAMRAI::hier::GridGeometry< DIM >:
Public Member Functions | |
GridGeometry (const string &object_name) | |
virtual | ~GridGeometry () |
void | findPatchesTouchingBoundaries (tbox::Array< tbox::Array< tbox::Array< bool > > > &touches_regular_bdry, tbox::Array< tbox::Array< tbox::Array< bool > > > &touches_periodic_bdry, const PatchLevel< DIM > &level, const IntVector< DIM > &periodic_shift, const BoxArray< DIM > &domain) const |
Determine for every patch on a level if it touches a regular physical boundary or a periodic boundary. | |
virtual void | setGeometryOnPatches (hier::PatchLevel< DIM > &level, const hier::IntVector< DIM > &ratio_to_level_zero, tbox::Array< tbox::Array< tbox::Array< bool > > > &touches_regular_bdry, tbox::Array< tbox::Array< tbox::Array< bool > > > &touches_periodic_bdry, bool defer_boundary_box_creation) |
Pass the arrays holding the boundary information to be stored in the concrete geometry classes, and construct boundary boxes if required. | |
void | setBoundaryBoxes (hier::PatchLevel< DIM > &level) |
Construct the boundary boxes for each patch and set them on the patch geometries. | |
void | computeShiftsForLevel (tbox::Array< tbox::List< IntVector< DIM > > > &shifts, const PatchLevel< DIM > &level, const BoxArray< DIM > &physical_domain) const |
void | computePhysicalDomain (BoxArray< DIM > &domain, const IntVector< DIM > &ratio_to_level_zero) const |
void | setPhysicalDomain (const BoxArray< DIM > &domain) |
const BoxArray< DIM > & | getPhysicalDomain () const |
bool | getDomainIsSingleBox () const |
void | printClassData (ostream &stream) const |
void | initializePeriodicShift (const IntVector< DIM > &directions) |
IntVector< DIM > | getPeriodicShift (const IntVector< DIM > &ratio_to_level_zero=IntVector< DIM >(1)) const |
IntVector< DIM > | computeMaxGhostWidth (tbox::Pointer< PatchDescriptor< DIM > > descriptor) |
Compute the maximum ghost width of all of the components associated with the patch descriptor. | |
virtual tbox::Pointer< hier::GridGeometry< DIM > > | makeRefinedGridGeometry (const string &fine_geom_name, const hier::IntVector< DIM > &refine_ratio, bool register_for_restart) const =0 |
virtual tbox::Pointer< hier::GridGeometry< DIM > > | makeCoarsenedGridGeometry (const string &coarse_geom_name, const hier::IntVector< DIM > &coarsen_ratio, bool register_for_restart) const =0 |
virtual void | setGeometryDataOnPatch (hier::Patch< DIM > &patch, const hier::IntVector< DIM > &ratio_to_level_zero, const tbox::Array< tbox::Array< bool > > &touches_regular_bdry, const tbox::Array< tbox::Array< bool > > &touches_periodic_bdry) const =0 |
void | computeBoundaryBoxesOnLevel (tbox::Array< BoundaryBox< DIM > > boundaries[], const PatchLevel< DIM > &level, const IntVector< DIM > &periodic_shift, const IntVector< DIM > &ghost_width, const BoxArray< DIM > &domain, bool do_all_patches=false) const |
Compute boundary boxes for each patch in patch level and assign them to the array of boundary box arrays, assumed to be of length DIM * (num patches). | |
void | getBoundaryBoxes (tbox::Array< BoundaryBox< DIM > > boundaries[DIM], const Box< DIM > &box, const BoxArray< DIM > &domain_boxes, const IntVector< DIM > &ghosts, const IntVector< DIM > &periodic_shift) const |
Compute boundary boxes for patch. |
Note that the derivation from tbox::DescribedClass is virtual. The reason for this is to avoid dynamic casting problems for smart pointers. Typically, SAMRAI geometry objects inherit from tbox::Serializable as well as this base geometry class. Thus, there is usually more than one class hierarchy for geometry objects. Pointers to base objects may need to be dynamically cast to derived objects in either hierarchy.
|
Constructor for GridGeometry. |
|
Destructor for GridGeometry. |
|
Determine for every patch on a level if it touches a regular physical boundary or a periodic boundary. This routine loops through all of the patches on the given level and determines which kinds of boundaries each patch touches. The 3-dimensional boolean arrays are set to store for each path whether it touches a regular boundary, a periodic boundary, both, or neither. The array arguments should be uninitialized when they are passed into this function.
|
|
Pass the arrays holding the boundary information to be stored in the concrete geometry classes, and construct boundary boxes if required. This routine will pass the arrays containing the information about which patches touch which boundaries to the concrete grid geometry class. Also, if defer_boundary_box_creation is false, this routine will call a routine to construct all of the boundary boxes for the patches on level and will set them in the patch geometry for each patch.
|
|
Construct the boundary boxes for each patch and set them on the patch geometries. This routine constructs the boundary boxes for every patch in the level. Once constructed, the boundary boxes are set on each patch's PatchGeometry object.
|
|
Compute the valid periodic shifts for each patch on a level. The shifts array will store a list of IntVectors for each patch. Each list will contain the valid possible periodic shifts for each particular patch. If there are no periodic boundary conditions or a patch does not touch a periodic boundary, the list for a patch will be empty. The patch geometry object for each patch on the level must be properly initialized before calling this routine. This is typically done in the patch level constructor. When assertion checking is active, the array of shifts in the argument list must have the same length as the number of patches on the level. |
|
Compute physical domain box array describing the index space of the physical domain managed by this geometry object. If any entry of ratio vector is negative, the index space is coarsened with respect to the physical domain description. Otherwise, the index space is refined. |
|
Set physical domain to input box array and determine whether domain is a single box. |
|
Return const reference to physical domain description for level 0. |
|
Return boolean value indicating whether the physical domain can be represented as a single box. |
|
Print object data to the specified output stream. Reimplemented in SAMRAI::xfer::Geometry< DIM >, SAMRAI::geom::CartesianGridGeometry< DIM >, and SAMRAI::geom::SkeletonGridGeometry< DIM >. |
|
Initialize the periodic shift on the coarsest level. The IntVector argument should be set to 1 for periodic directions and 0 for all other directions. The shift will be calculated to be the number of cells in the periodic direction and zero in all other directions. |
|
Return IntVector<DIM> containing the periodic shift in each direction for a domain represented by a refinement of the reference physical domain (i.e. level zero) by the given ratio vector. tbox::Array entries will be zero for non-periodic directions. By default (i.e., when no argument is passed, the function returns the periodic shift for level zero in the hierarchy. |
|
Compute the maximum ghost width of all of the components associated with the patch descriptor. Calculates the maximum ghost width for all the variables associated with the patch descriptor. This must only be called after all of the variables have been registered with the VariableDatabase. If a variable is added that changes the maximum ghost width, then an assertion failure will result. |
|
Pure virtual function to create and return a pointer to a refined version of this grid geometry object. Implemented in SAMRAI::geom::CartesianGridGeometry< DIM >, and SAMRAI::geom::SkeletonGridGeometry< DIM >. |
|
Pure virtual function to create and return a pointer to a coarsened version of this grid geometry object. Implemented in SAMRAI::geom::CartesianGridGeometry< DIM >, and SAMRAI::geom::SkeletonGridGeometry< DIM >. |
|
Implemented in SAMRAI::geom::CartesianGridGeometry< DIM >, and SAMRAI::geom::SkeletonGridGeometry< DIM >. |
|
Compute boundary boxes for each patch in patch level and assign them to the array of boundary box arrays, assumed to be of length DIM * (num patches). The DIM arrays of boundary boxes for each patch will be stored in groups of DIM. For example, in 3d with n patches on the level, the array For example, in 3d with n patches on the level, the array of boundary box arrays will be ordered as follows:
* (patch 0 face array, patch 0 edge array, patch 0 node array, * patch 1 face array, patch 1 edge array, patch 1 node array, . . . , * patch n-1 face array, patch n-1 edge array, patch n-1 node array) * The optional argument do_all_patches defaults to false, in which case the boundary box computation is executed only on patches that touch a non-periodic boundary. When this routine is called during patch level construction to describe a physical boundary, it is known that only patches that touch a non-periodic boundary will have non-empty sets of boundary boxes, so for efficiency's sake the boundary box box computation is supressed for all other patches. When this routine is called to create boundary boxes that describe a coarse-fine boundary, the computation must occur for every patch, so do_all_patches mush be set to true.
|
|
Compute boundary boxes for patch. Decompose patch boundary region into pieces depending on spatial dim. Boxes are extended along the boundary to the edge of the ghost layer if necessary. |
