SAMRAI::geom::CartesianEdgeFloatConservativeLinearRefine< DIM > Class Template Reference

#include <source/geometry/cartesian/operators/edge/CartesianEdgeFloatConservativeLinearRefine.h>

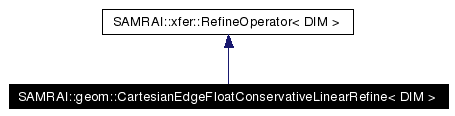

Inheritance diagram for SAMRAI::geom::CartesianEdgeFloatConservativeLinearRefine< DIM >:

[legend]List of all members.

Public Member Functions
	CartesianEdgeFloatConservativeLinearRefine ()
virtual	~CartesianEdgeFloatConservativeLinearRefine ()
bool	findRefineOperator (const tbox::Pointer< hier::Variable< DIM > > &var, const string &op_name) const
int	getOperatorPriority () const
const string &	getOperatorName () const
hier::IntVector< DIM >	getStencilWidth () const
void	refine (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const int dst_component, const int src_component, const hier::Box< DIM > &fine_box, const hier::IntVector< DIM > &ratio) const

---

Detailed Description

template<int DIM>
class SAMRAI::geom::CartesianEdgeFloatConservativeLinearRefine< DIM >

Class CartesianEdgeFloatConservativeLinearRefine implements conservative linear interpolation for edge-centered float patch data defined over a Cartesian mesh. It is derived from the base class xfer::RefineOperator<DIM>. The numerical operations for the interpolation use FORTRAN numerical routines.

The findRefineOperator() operator function returns true if the input variable is edge-centered float, and the string is "CONSERVATIVE_LINEAR_REFINE".

See also:

xfer::RefineOperator

---

Constructor & Destructor Documentation

template<int DIM> SAMRAI::geom::CartesianEdgeFloatConservativeLinearRefine< DIM >::CartesianEdgeFloatConservativeLinearRefine (   )

Uninteresting default constructor.

template<int DIM> SAMRAI::geom::CartesianEdgeFloatConservativeLinearRefine< DIM >::~CartesianEdgeFloatConservativeLinearRefine (   )  [virtual]

Uninteresting virtual destructor.

---

Member Function Documentation

template<int DIM> bool SAMRAI::geom::CartesianEdgeFloatConservativeLinearRefine< DIM >::findRefineOperator (  const tbox::Pointer< hier::Variable< DIM > > &  var, const string &  op_name )  const [virtual]

Return true if the variable and name string match edge-centered float conservative linear interpolation; otherwise, return false. Implements SAMRAI::xfer::RefineOperator< DIM >.

template<int DIM> int SAMRAI::geom::CartesianEdgeFloatConservativeLinearRefine< DIM >::getOperatorPriority (   )  const [virtual]

The priority of edge-centered float conservative linear is 0. It will be performed before any user-defined interpolation operations. Implements SAMRAI::xfer::RefineOperator< DIM >.

template<int DIM> const string & SAMRAI::geom::CartesianEdgeFloatConservativeLinearRefine< DIM >::getOperatorName (   )  const [virtual]

Return name string identifier of this refinement operation. Implements SAMRAI::xfer::RefineOperator< DIM >.

template<int DIM> hier::IntVector< DIM > SAMRAI::geom::CartesianEdgeFloatConservativeLinearRefine< DIM >::getStencilWidth (   )  const [virtual]

The stencil width of the conservative linear interpolation operator is the vector of ones. Implements SAMRAI::xfer::RefineOperator< DIM >.

template<int DIM> void SAMRAI::geom::CartesianEdgeFloatConservativeLinearRefine< DIM >::refine (  hier::Patch< DIM > &  fine, const hier::Patch< DIM > &  coarse, const int  dst_component, const int  src_component, const hier::Box< DIM > &  fine_box, const hier::IntVector< DIM > &  ratio )  const [virtual]

Refine the source component on the coarse patch to the destination component on the fine patch using the edge-centered float conservative linear interpolation operator. Interpolation is performed on the intersection of the destination patch and the fine box. It is assumed that the coarse patch contains sufficient data for the stencil width of the refinement operator. Implements SAMRAI::xfer::RefineOperator< DIM >.

---

The documentation for this class was generated from the following files:

• source/geometry/cartesian/operators/edge/CartesianEdgeFloatConservativeLinearRefine.h
• source/geometry/cartesian/operators/edge/CartesianEdgeFloatConservativeLinearRefine.C

---
